Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JIAYUAN |
| Certification: | CE,ISO,SGS |
| Model Number: | QGF-450 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | US $30,000 - 50000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 working days |
| Supply Ability: | 10 Set/Sets per Month |
| Packaging Type: | Barrel,Bottles, Cartons | Automatic Grade: | Fully-Automatic |
|---|---|---|---|
| Driven Type: | Electric Driven | Power: | 3.8kw |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | One Year |
| Filling Type: | Normal Pressure | Processing Types: | Water |
| Dimension(L*W*H): | 3800*1300*1600MM | Filling Bottle Size: | 1-5gallen/3-19L |
| Highlight: | 5 gallon water bottle filling machine,5 gallon filling machine |
||
Pure water 5 gallon filling machine 19 liter water bottling machine
Jiayuan---Product Description
Pure water 5 gallon filling machine 19 liter water bottling machine
Keyword: 5 gallon water filling machine/5 gallon filling machine/gallon filling machine/5 gallon Washer Filler Capper Monoblock/450 barreled Production Line/5 gallon production line/5gallon barreled production line/20 liter bottled water filling machine/19 liter water bottle filling machine
Jiayuan---Feature
Pure water 5 gallon filling machine 19 liter water bottling machine
1.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.
2.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.
3.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.
Jiayuan---Main technical parameter
| Model | QGF-80 | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
| Filling heads | 1 | 1 | 2 | 3 | 4 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 80 | 150 | 300 | ||
| Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
| Gas consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 |
| Motor power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 |
| Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 500 | 700 | 1200 | 1600 | 2000 |
| Dimension | 2500*1100*1600 | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |

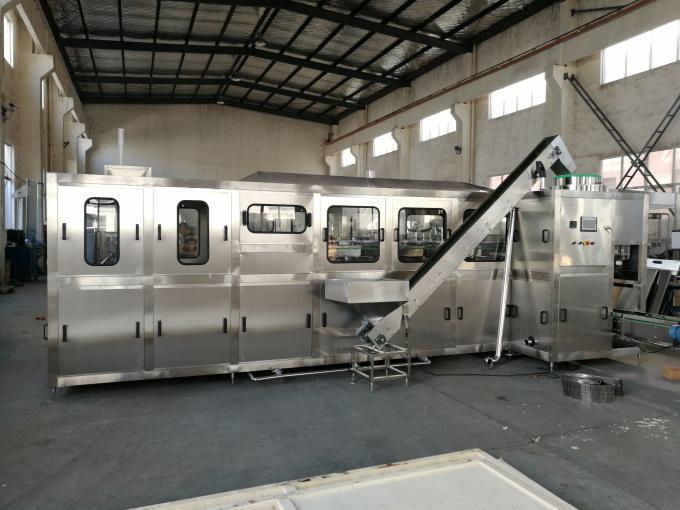

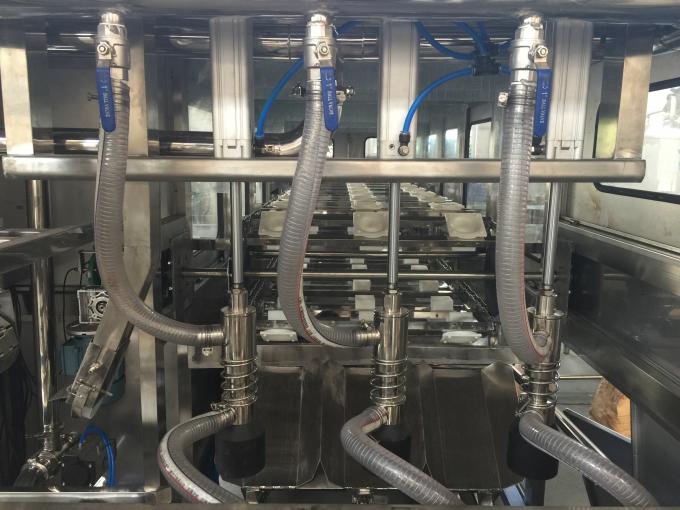

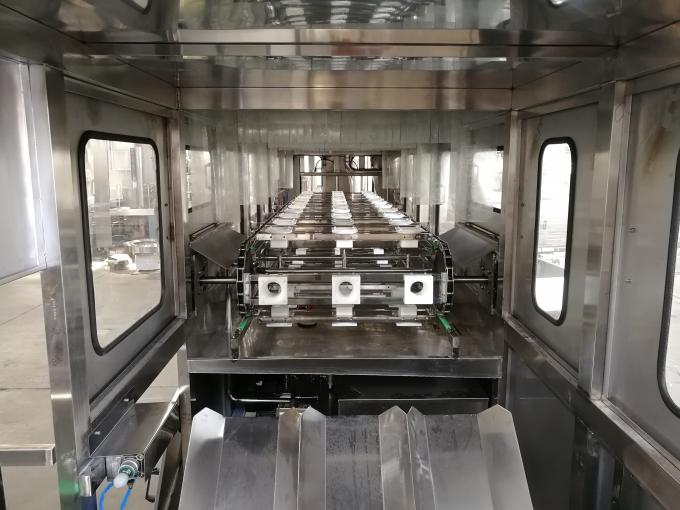

Image show
Jiayuan---Production line

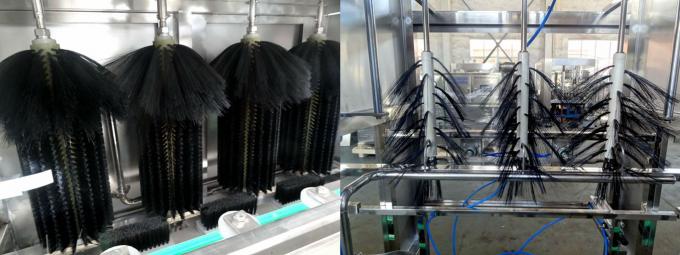

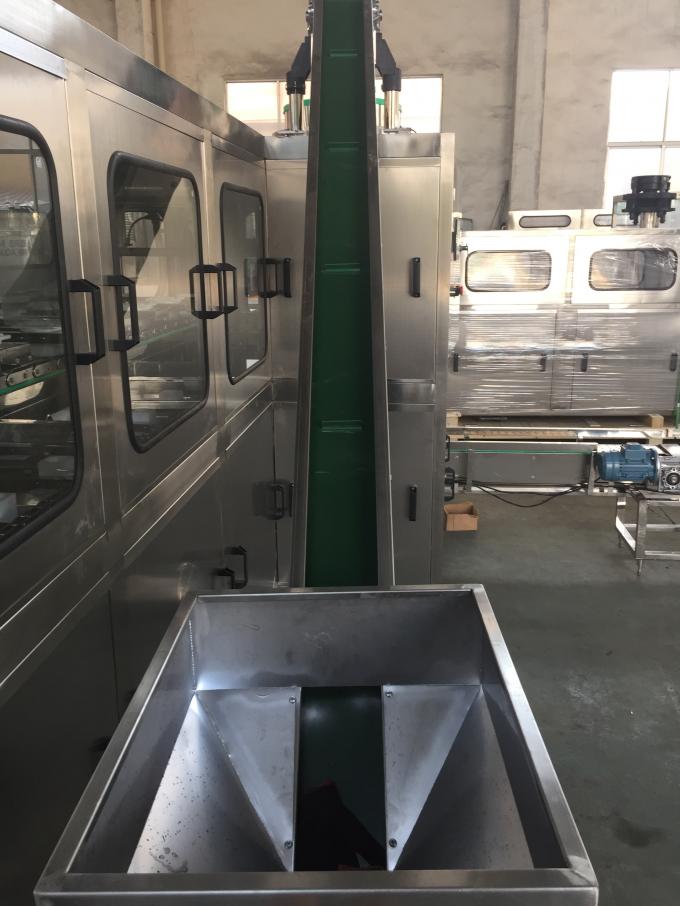

| Water treatment system → Bottle blowing machine → Automatic decapper → External and Inner brusher → Rotary type barrel washing filling capping machine → Cap elevator →Light checker→ Heat shrinker |
Jiayuan-Certification
Jiayuan---Kindly remind
Please kindly send us your requirements:
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottlesper hour you want to produce ?
4, do you need this water filling machines only or whole water production line
1.One year warranty for the whole system.
2.Free equipment installation and debugging.
3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4.We can provide internship service and help you train the operator and mechanic.
5.Free beverage production technology and process configuration.
6.We can help you to design the product line, workshop and provide turn-key project.
Jiayuan---packing&shipping
Jiayuan---Company Information
Jiayuan company was established in1997,and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry.we have such as CE,ISO etc certification.we are a company integrating scientific research,production and service,and have the best manufacturing facilities and production process,professional staffs,imported facilities of concentration distill series,automatic CIP series,PLC control etc.Now we have been a market leader in the Chinese food machinery industry.The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies.It has comprehensive development capacity and sound quality assurance system,and has made R&D achievement and obtained invention patents.Our machinery are widely sold in China,and exported over 20 countries,adn gained favorable feedback from users.Our major engineering projects include complete dairy products production line,beverage production line,biochemical engineering production line.
