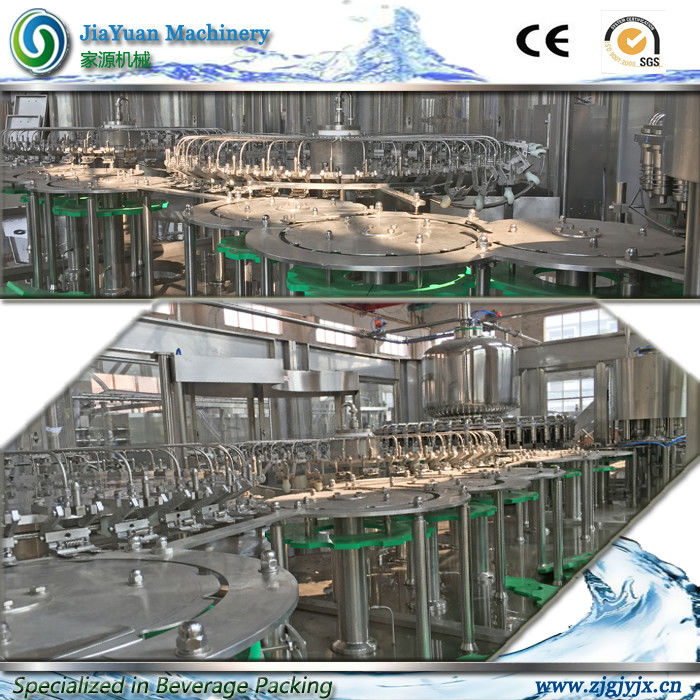

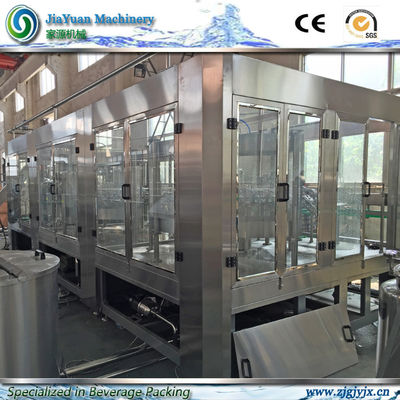

Rotary Filling Machine For Pure Mineral Water Filling

1. Briefs on this mineral/pure water filling machine

Worthwhile! Mineral Water Plant Machinery Cost on a Low Level Now

a. This 4-in-1 machine is for the mineral/pure water production line.
mineral water plant machinery mineral water plant machinery cost mineral water plant
b. Four functions in one monoblock with rotating system saves you a lot of time and cost.
mineral water plant machinery mineral water plant machinery cost mineral water plant
c. All of the key modules are from the elite companies like Siemens and Mitsubishi.
mineral water plant machinery mineral water plant machinery cost mineral water plant
d. The bottle's volume range from 300ml to 2500ml, and the type is PET/plastic.
mineral water plant machinery mineral water plant machinery cost mineral water plant
e. We produce and sell other parts of the mineral/pure water production line too.
mineral water plant machinery mineral water plant machinery cost mineral water plant
Having been proved by the CE SGS.

JiaYuan machinery CGFB series


2. Details with images

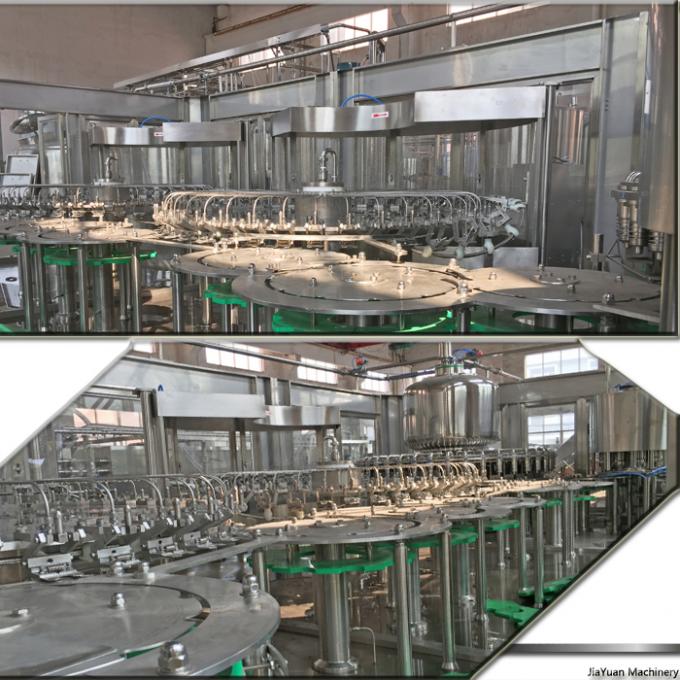

How this particular plastic bottles washing/filling/capping machine works:
mineral water plant machinery mineral water plant machinery cost mineral water plant
a. Bottles are sent into the machine through air conveyor and all working parts of the machine start to rotate.
b. Starwheel inside the machine picks bottles up and sends them to the rinser. The rinser starts to wash the bottles.mineral water plant machinery mineral water plant machinery cost mineral water plant
c. The filler will get to work while rinser's done, The transportation is also conducted by a starwheel.
d. And then bottles will be sent to the capper by a starwheel, and capper starts to work.
e. At last, those filled and capped bottles will be sent out of the machine to the next stop.
mineral water plant machinery mineral water plant machinery cost mineral water plant
air conveyor: a type of conveyor placed outside the machine. It transprots bottles into the machine
starwheel: a type of conveyor installed inside the machine, fits the machine's rotating mechanism, which means it's rotating while transporting bottles.

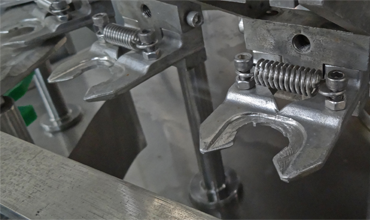

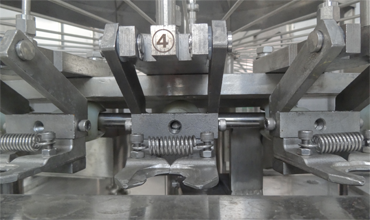

	the sterilizer's clutches:   pick up bottles from the conveyor by clipping botles' necks while rotating. Gradually turn bottles upside down and rotate into sterilizing area where bottles get sterilized by spraying sterilizing water from above.
the rinser's clutches:   pick up sterilized bottles from the conveyor and turn them upside down while rotating. They will send bottles into rinsing area where bottles get washed by water thoroughly.

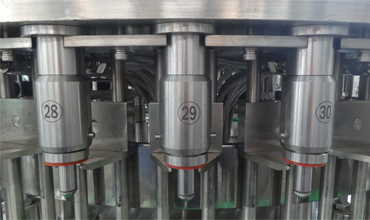

	the filler's nozzles:   They are made of finely preprocessed stainless steel, The oval bulge that is right above each nozzle adjusts bottles into the right position before fillers fill them up. This whole combination just achieves highly accurate filling process.

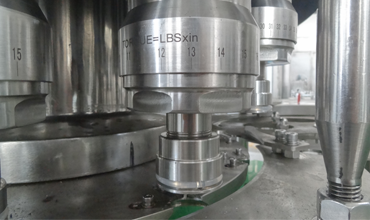

heads of the capper:   The capping module is highly accurate. With the help of the photoelectic sensor, each head of the capper is able to detect if there is bottle down there, They whether or not do the capping motion based on the detection.



3. Quality Assurance





4. Company Information:

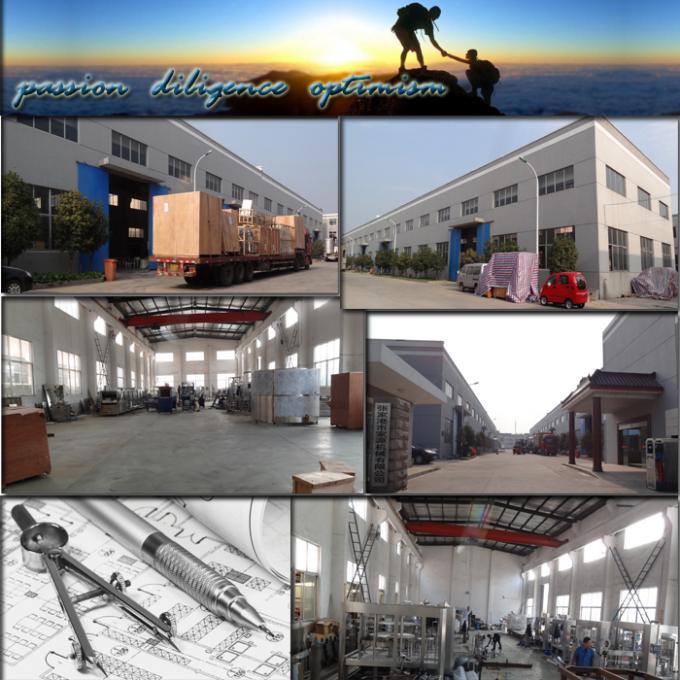

      We locate in ZhangJiaGang, a small city near ShangHai. we have several certificates such as CE,SGS,etc. we have a batch of decent manufacturing facilities, professional staff, diligent and farsighted leadship. Our machines are widely sold domestically and abroad. We've been majoring in complete beverage production line, including pure/mineral water production line, non-carbonated drinks production line, carbonated drinks production line.


4. Our service:



1. If you are interested:
a. Contact us for more detailed info, We are happy to answer your questions.
b. We highly recommend you come to our factory to check out the machine personally, You would be picked up and treated with a warm reception.
c. We also suggest you visit our fellow customers' places where are near your place if possible.
2. Customized service
a. We could design and build the machines according to your requirements(material, power, filling method, type of bottle, some certain modules, etc). Meanwhile, we could also give you professional suggestions.
b. We also offer turnkey project, help you design production-line layout and train skilled employees who are able to operate properly.
3. After-sales service
a. We set your shopping experience as our top priority, we will produce as exactly you require and let you get your machine as soon as possible.
b. Our engineers will arrive at your factory right after the machine's arrival. They will help install the machine and teach your employees how to operate properly.
c. We provide one year warranty with free spare components.
