Mineral Water Purifying Machine

10 Tons per hour SUS304 drinking water mineral water UF water treatment plant price

Quick Detail:

1. Capacity range: 10 tons per hour.
2. Main material: SUS304
3. Main pump brand: Nanfang pump
4. Main electric component brand: Mitsubishi
5. Ultra filter membrane brand: Hydranautics
6. Certificate: CE, SGS
7. Easy operate

Mineral Water Purifying Machine Semi Automatic UF Water Treatment

Description:

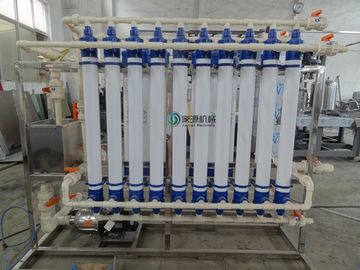

UF water equipment

1. Ultra filtration is a separation technique widely used. Mainly the use of polysulfone, microporous polyethersulfone ultra filtration membranes (molecular weight cut thousands of ten thousands daltons) filter out impurities in the water can be removed more than 98% organic matter, to ensure that the treated water is less than 1 SDI, the SDI value, the turbidity is very satisfactory. The pretreatment facilities are exempt large, does not need the coagulant, flocculation, comply with environmental requirements.

2. Ultra filtration membrane is the anisomerous semi permeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton, and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid.

3. Main Process Flow of Systems:

Raw Water →Raw water pump→ sand filter→carbon filter→water softener→security filter→High-pressure pump→ UF system→ pure water tank

4 The main technical data:

1. Capacity: 10000L/H
2. Rated Operating Pressure:0.3Mpa
3. Power supply:AC220V/AC380V, 50Hz/60Hz
4. Turbidity(NTU):<0.5
5. Pollution index : <0.5
6. PH:2-12
7. Work pressure (Mpa):0.05-0.2
8. Work temperature(°C):10-45

  5. Features
(1) Low power consumption, can operate in normal temperature and low pressure
(2) Small size, simple structure, low investment
(3) The processing in only liquid transpotation by pressure, so the flow chat is simple and easy to operate and manage.

(4) Treatment capacity can be 1-100 tons per hour.

Application

1). Pure and ultra pure water equipment,

2). No bacterium no heat raw water equipment for pharmacy,

3). Purification for beverage, drinking water and mineral water,

4). Separation, concentration and purification in industry

5). Wastewater treatment, electrophoretic coating, electroplating, oil wastewater treatment, etc.

Specifications:

Complete mineral water treatment plant is consist of the following equipments

Competitive Advantage:

1. Stainless steel plate thickness of filters is 4mm, more durable.
2. Be apt to clean the inside with the manhole design.
3. Machine component can be adjustable according to customer’s requirement.
4. Protected when no power, poor power, larger electrical current short circuit, creep age of electricity
5. More beautiful appearance.
6. Purified water high water level auto stop, low water level auto start
7. Easy to backwash.
8. Multi-phases pump protected without water
