Full Automatic Mineral Water Bottle Filling Machine With CE Certification



Full Automatic Mineral Water Bottle Filling Machine With CE Certification



Products Introduction

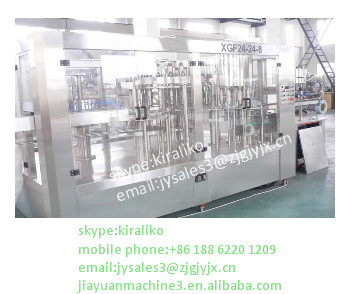

This machine is a monoblock one, it integrates bottle rising filling and capping three funtions in one unit, suitable for filling non-carbonated beverage, like mineral water, purified water, spring water, distilled water,various juice or other non-gas liquid. can reach about 14000B/H(for 500ml PET bottle).It seals special hat cap.





















































Technical Parameters

Model	CGF16-12-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12
Production capacity(500ml)	2000-4000	4000-6000	6000-8000	12000-15000	16000-18000
Filling precision	≤±5mm(liquid level)
Polyester bottle standard(mm)	Bottle neck40-80	Bottle neck: 50-100 bottle height:150-320
Suitable cap shape	Plastic screw cap
Water pressure of washing bollte(MPa)	0.18-0.25
Water consumption for water bottle(kg/h)	800	1600	2500	3000	1000
Spraying positon	5	5	6	12	5
Dripping bottle position	3	3	3.5	7	8
Gas source pressure	normal pressure
Gas consumption (m3/min)	0.3	0.3	0.4	0.5	0.6
Total power(kw)	4.23	5.03	6.57	8.63	9.63
Total weight	2000	3500	5500	6000	8000
Dimension(L*W*H) (mm)	2100*1500*2200	2450*1800*2200	2750*2180*2200	3500*2200*2250	3500*2200*2250

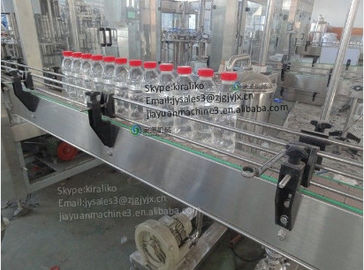

Machine Details

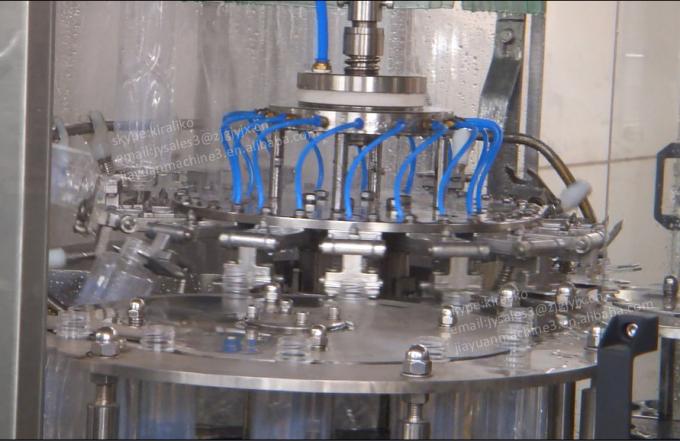

Washing part of water bottle filling machine

a) Rotary pan is made of stainless steel 304(or change to 316 according to your request).

b) The rubber clamp splice sizes the mouth of bottles, which is fixedness and reliable.

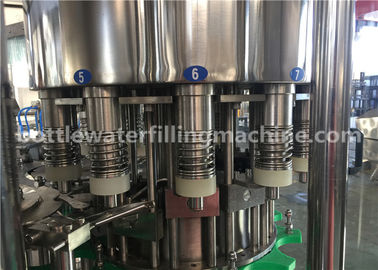

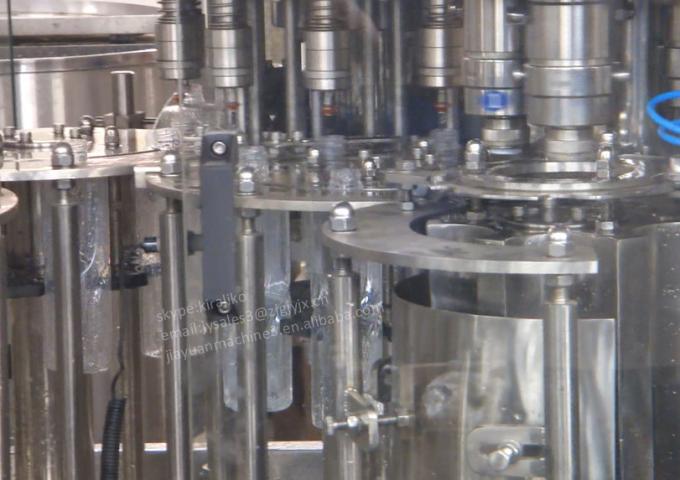

Filling part of water bottle filling machine

a) Rotary pan is made of stainless steel 304 (or change to 316 according to your request )

b) The way of filling is gravitation filling.

c) The filling valve is adopted best stainless steel 304 (or change to 316 according to your request )

d) The structure of filling valve is reasonable, the amount is correct

e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottl

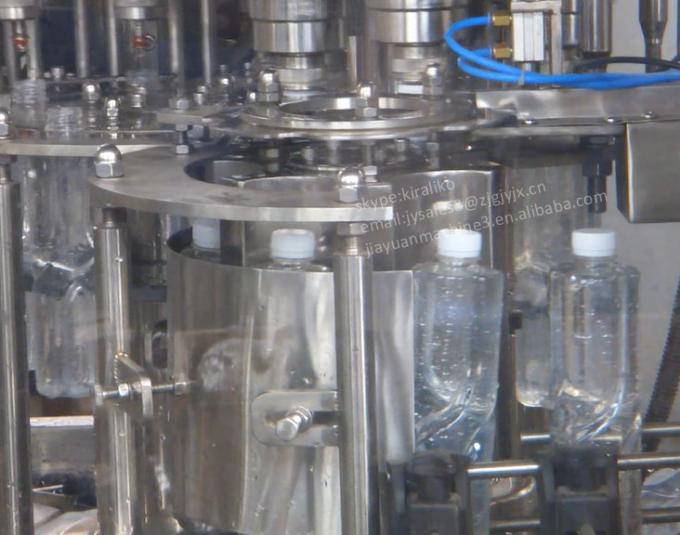

Capping part of water bottle filling machine

Capping machine is one of the highest precision machines, which greatly affects the reliability of device and the defective rate of product. The characteristic is as follows:

a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.



if your capacity is less than 2000bph, the following is your best choice

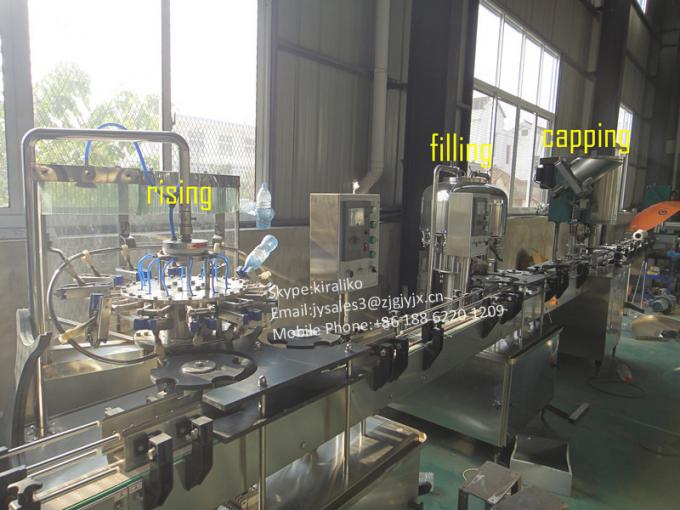

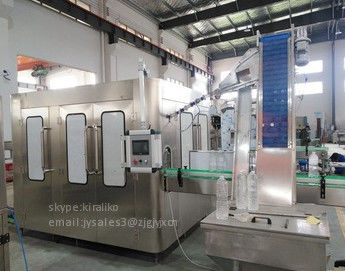

2000bph split water machine



Related Products

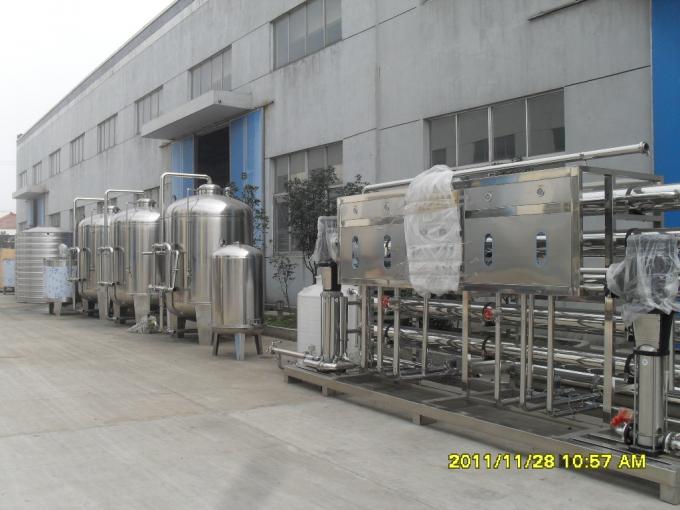

1.water treatment plants in our workshop

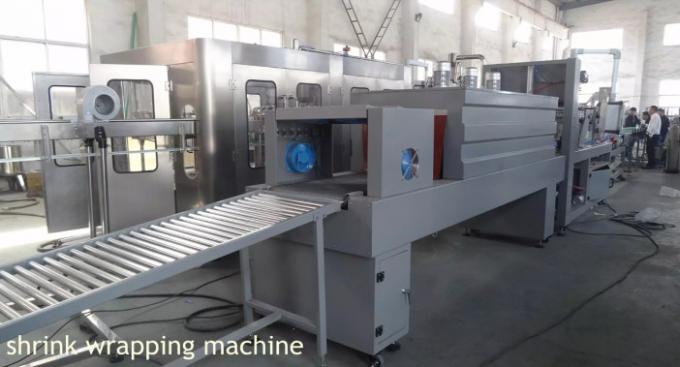

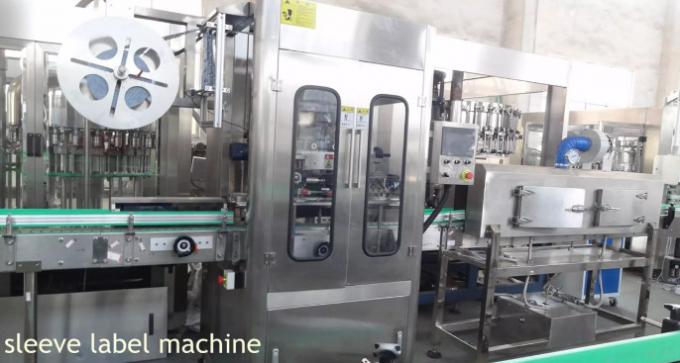

2.packaging system plants in our workshop
